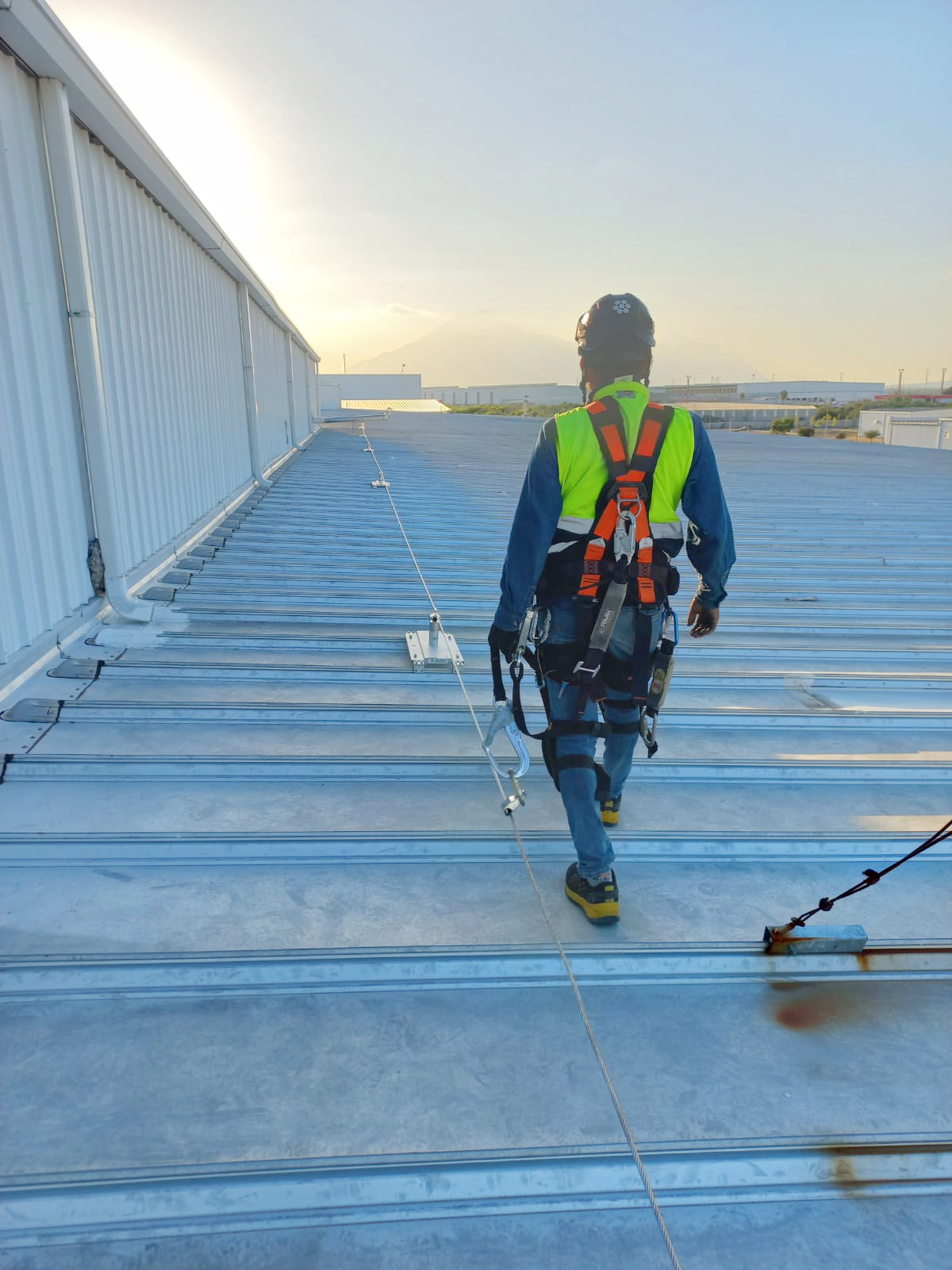

Horizontal Lifeline Systems, also known as HLL systems, are utilized in many fall protection applications and lie on the Fall Restraint Systems and Fall Arrest Systems rungs of the Hierarchy of Controls. They are common solutions in work areas that lack existing anchor points for personnel tie-off. In its simplest form, a horizontal lifeline consists of a cable attached to two or more anchor points on a rooftop, crane runway, bridge, outdoor construction site or any other elevated work area that poses a fall risk to personnel.
A horizontal lifeline can be positioned at the base of a structure (e.g., a roof), overhead (e.g., railcar and truck loading/unloading applications) or somewhere in between these points (e.g., crane rail applications).
Total Grip - Horizontal Lifeline System
The Total Grip Horizontal Lifeline System is a high-performance fall protection solution engineered to deliver maximum safety, reliability, and ease of installation. Designed for use on a wide range of structures, this system combines advanced energy absorption technology with precision-engineered stainless steel components to control forces during a fall and protect both the user and the supporting structure. Its robust design ensures optimal tensioning, smooth user movement, and long-term durability in harsh environments. Built to meet leading international safety standards, the Total Grip system provides a dependable, efficient, and fully integrated solution for modern work-at-height applications.
Why Choose Total Grip
To Install on Steel Deck with Insulation, Wood and Concrete
The Total Grip HLL System is a complete solution that can be adapted to any work area. Our system can be installed directly to the roof or to the structure if necessary, depending on the calculation obtained through our HLL Assistant calculation tool.
Our selection of bases allows the Total Grip system to be used on any type of structure; concrete, metal, roof with insulation, trapezoidal roof, standing seam roof, round or double-folded and many others.
Non-Invasive Installation

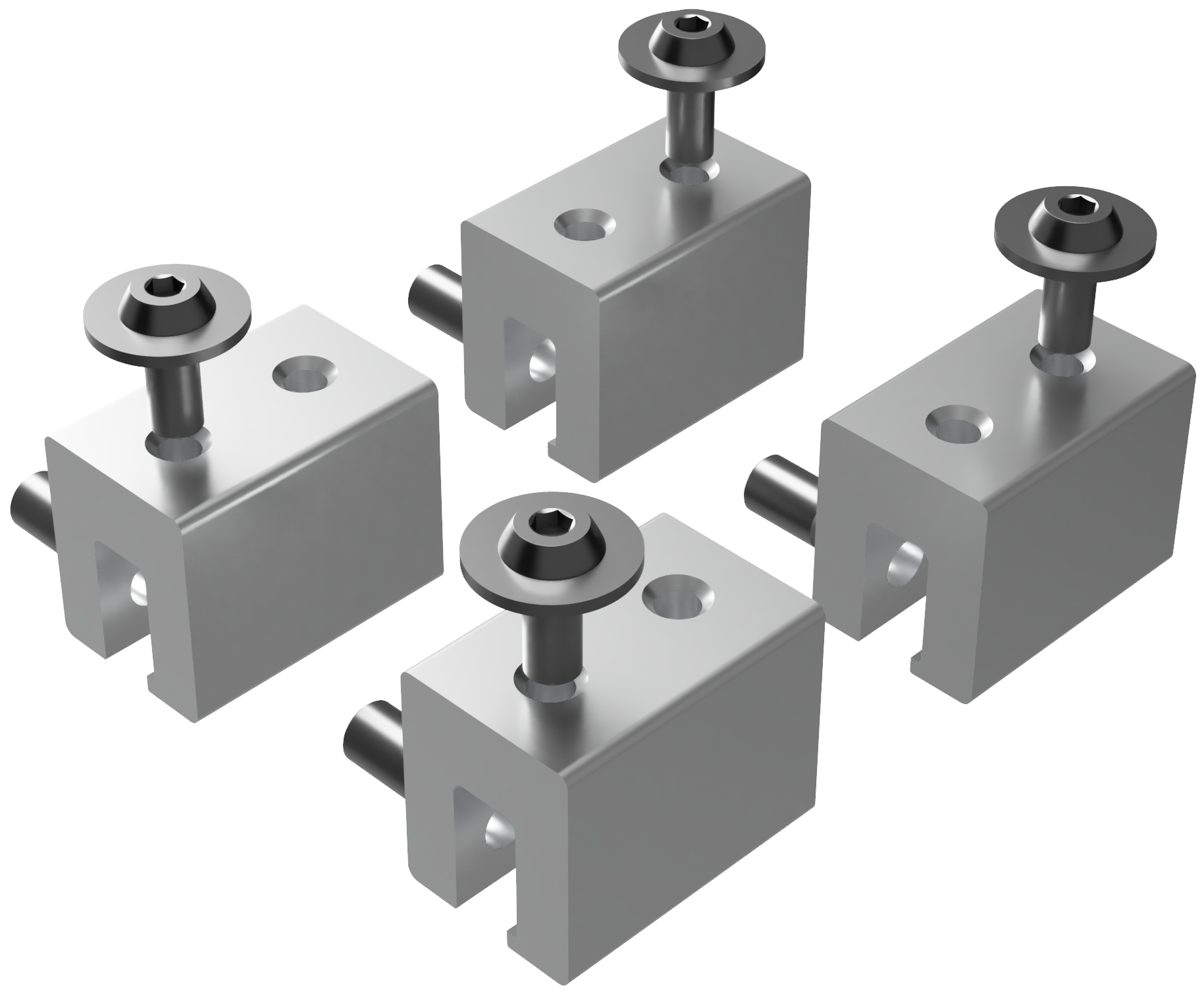

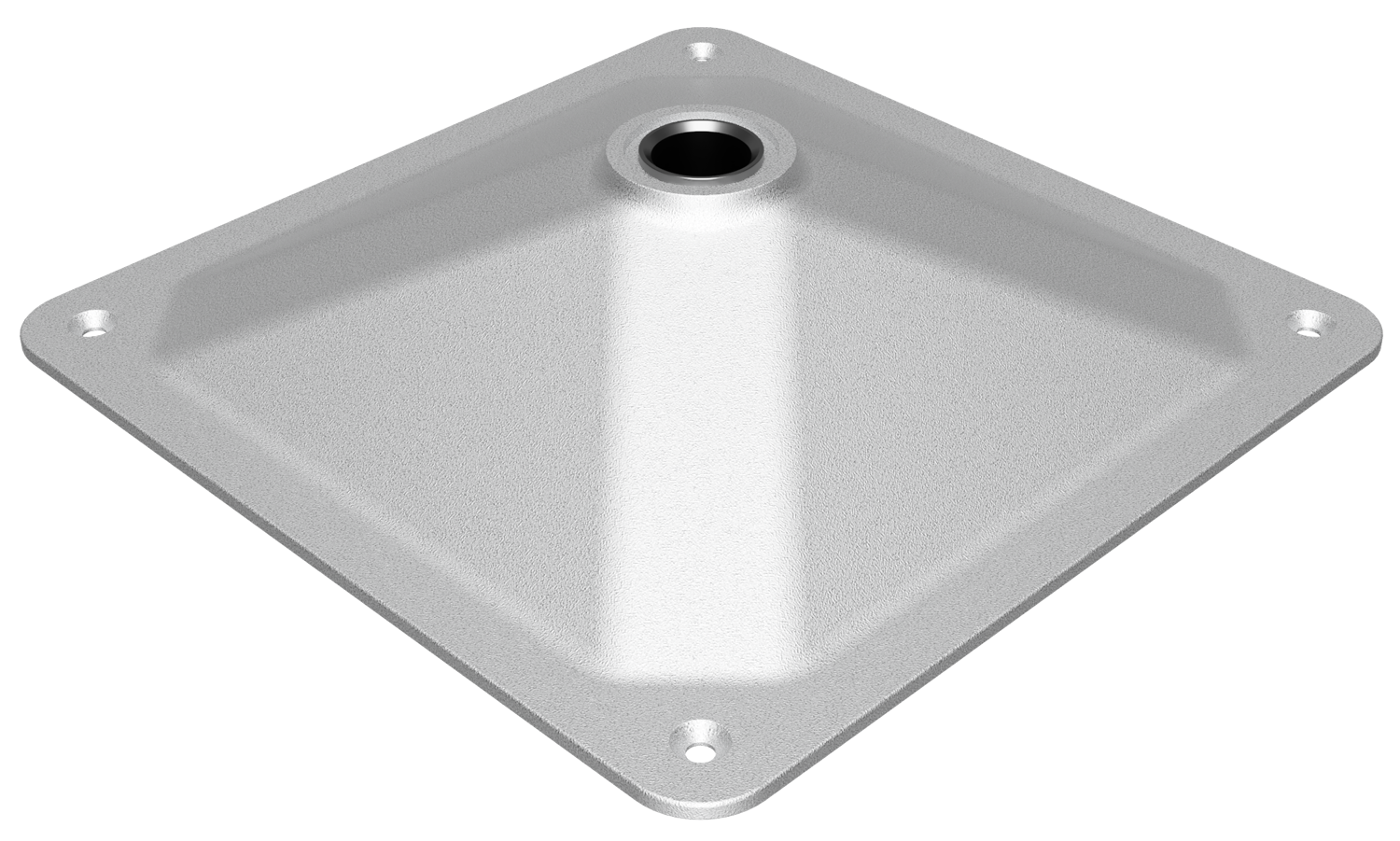

Our HLL System has been designed with the integrity of the roof structure in mind. Our installation components are considered non-invasive with a limited number of components. It employs bulb tite rivets on trapezoidal roofs and roof clamps on standing seam roof, round or double fold. Only the installation of our Aluminum Base Plate requires a small hole of 4.5 cm to install the required toggle anchor.
Uninterrupted Connection

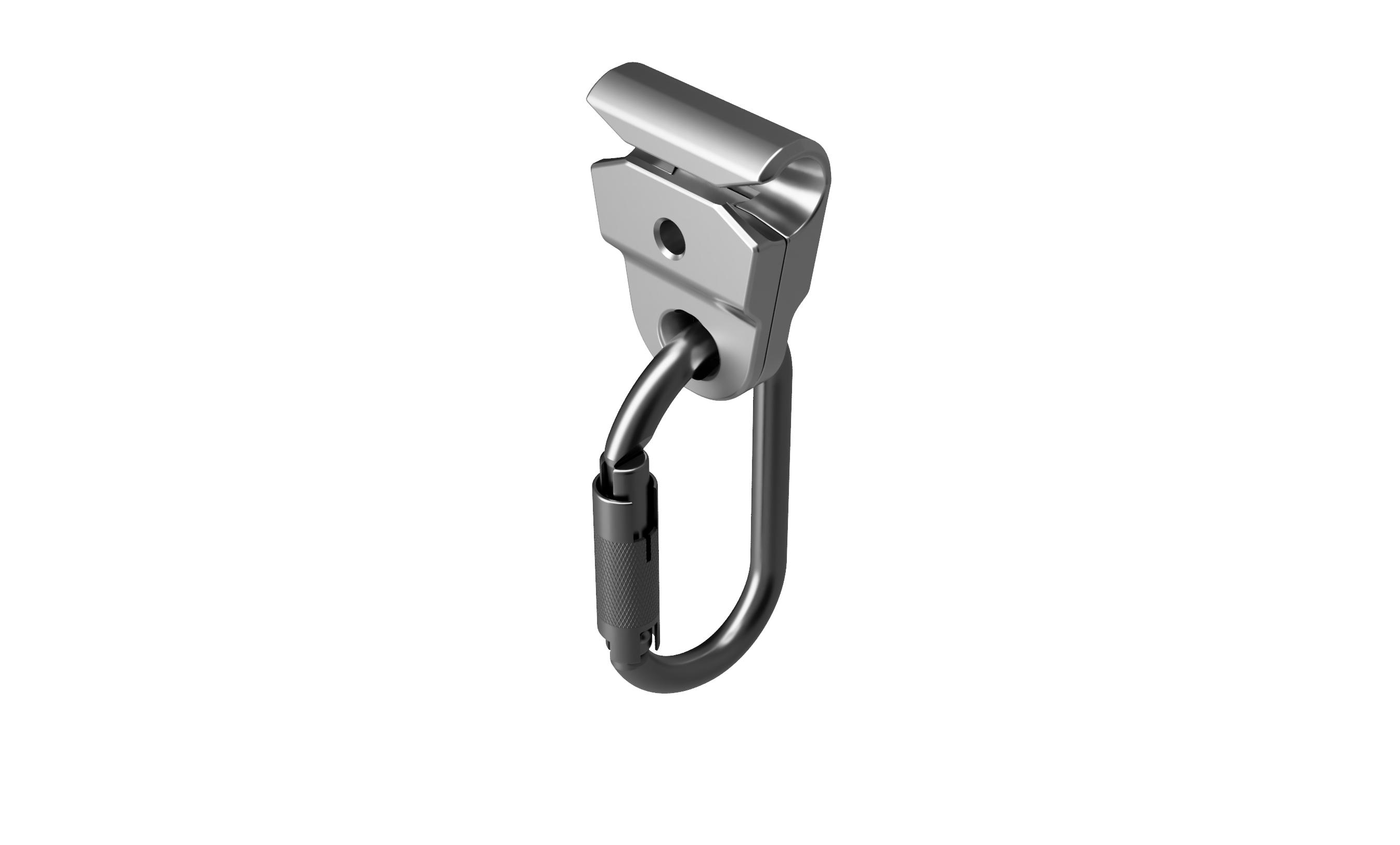

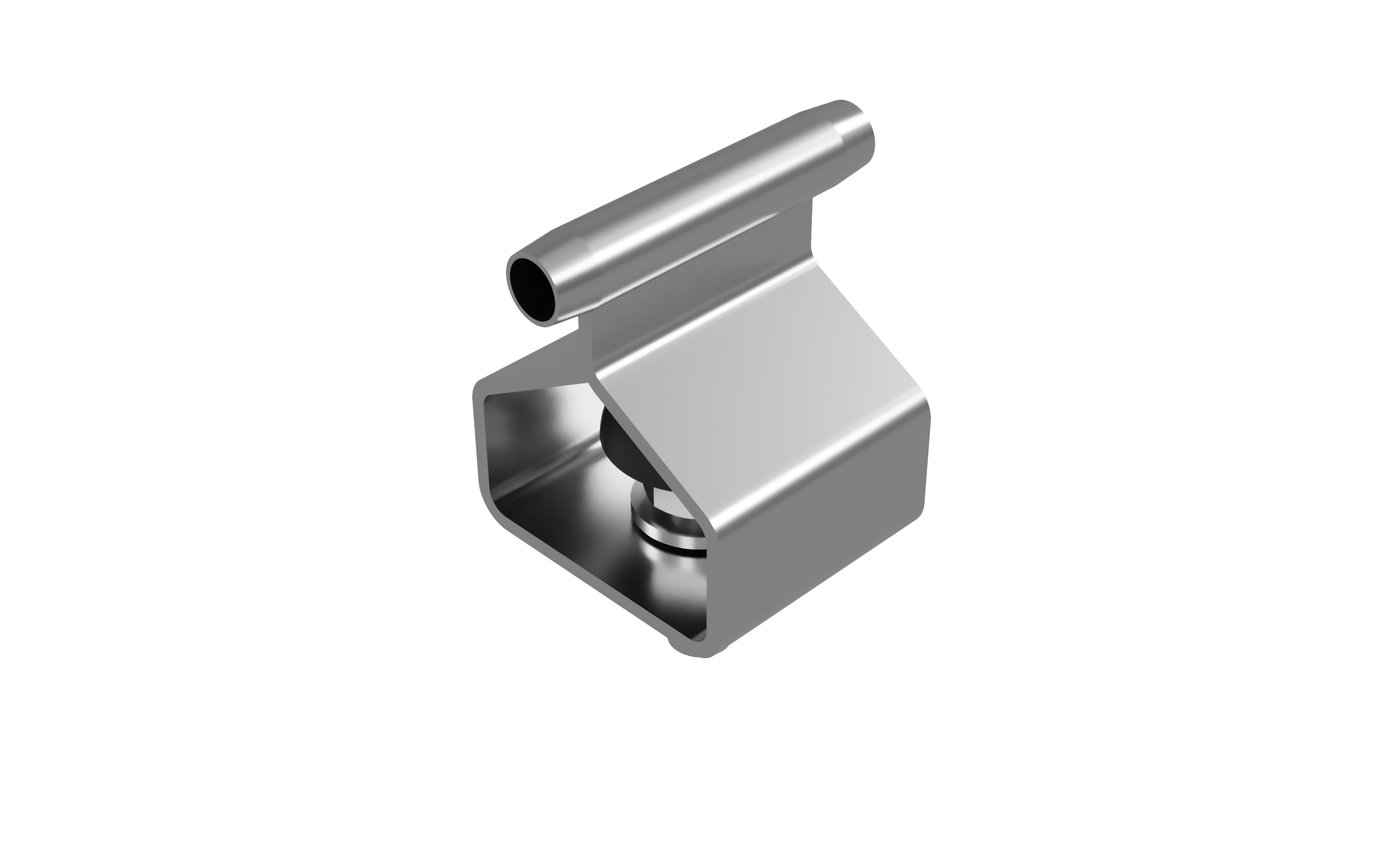

Another key distinction of the Total Grip system is our simply designed yet convenient and safe Roof/Wall slider, which allows users to move smoothly and without interruptions throughout the entire installed horizontal lifeline, passing through the cable guides without needing to disconnect from the line.
Modular Design

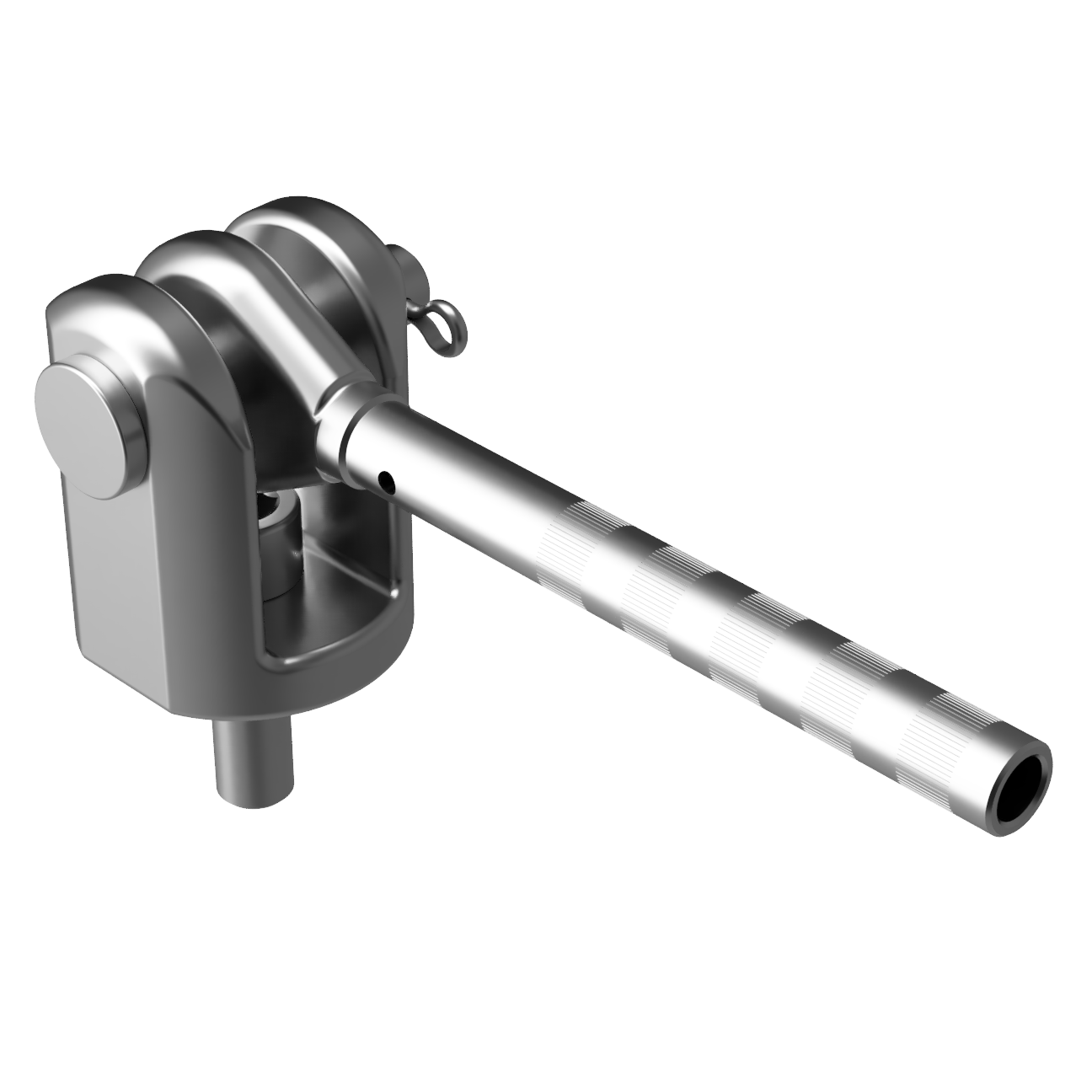

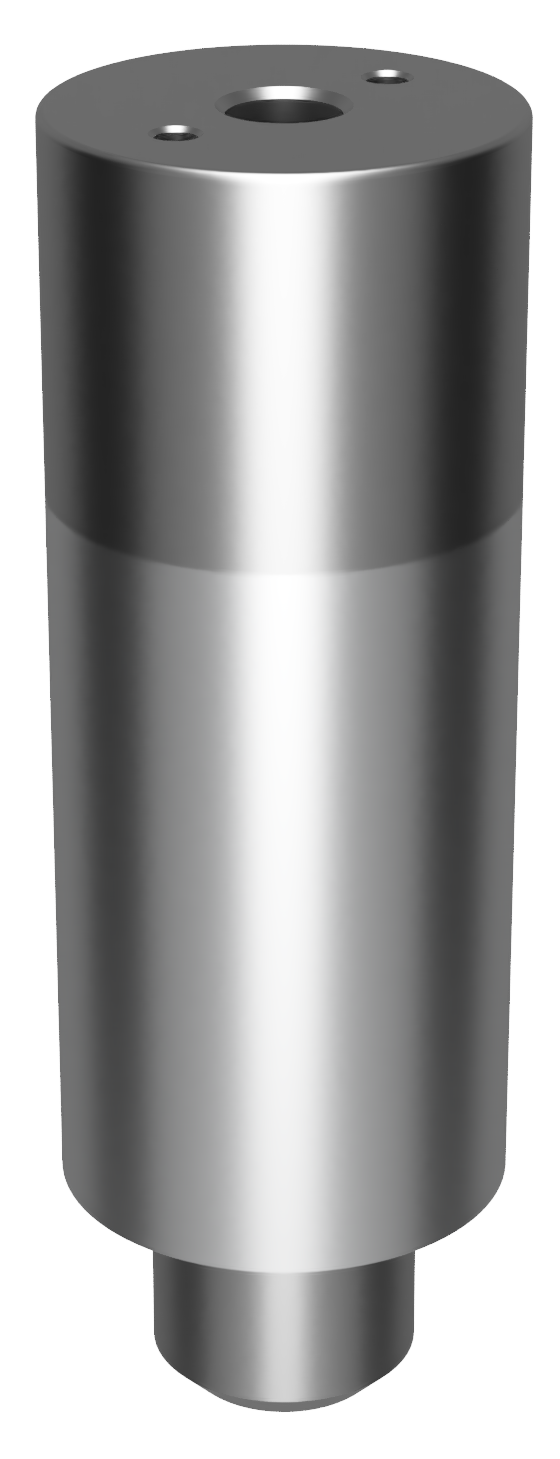

Due to our sophisticated design and modular configuration, our system can be installed using posts with integrated kinetic absorber between a tensioner end and a swage end, or with rigid posts between a line dampener and tensioner end.
